Bay Corners

product image
left arrow right arrow
Downloads

Steel-Ply Bay Corners

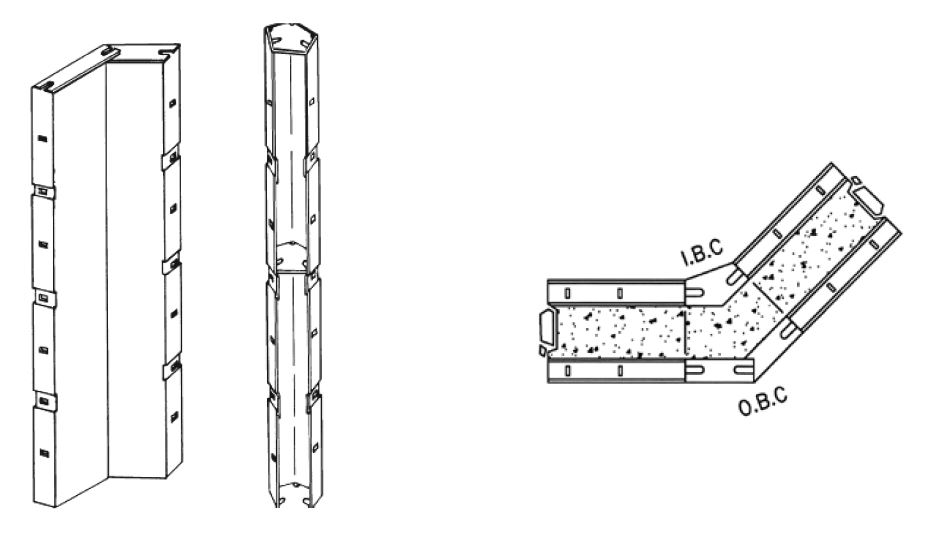

Universal Formworks USA's Steel-Ply Inside Bay Corners opposite the Outside Bay Corners to form a 135° angle. The Inside Bay Corner has a 3"x3" face dimension, and the Outside Bay Corner has a 7"x7" face dimension. Ties connect at adjoining panel joints to complete this forming detail. Bay Corners can also be used horizontally to form wall haunches and “Y” walls.
