Pipe Form Aligner

product image
left arrow right arrow

Pipe Form Aligner

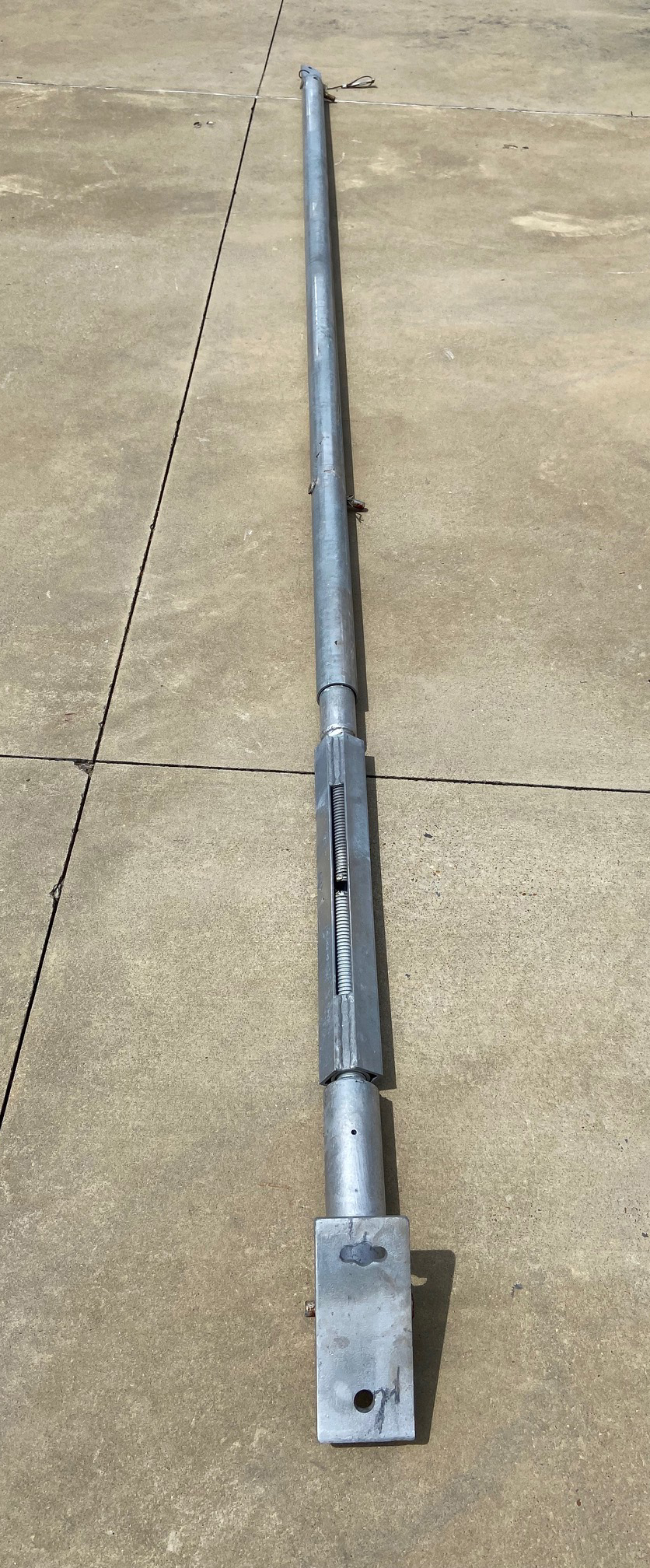

Universal Formwork USA's UF-3918 Pipe Form Aligner (Long Tube Brace) eliminates the use of lumber and provides vertical alignment by bolting directly to vertical stiffeners. The top end of the Pipe Form Aligner uses a Steel-Ply Adapter Plate which connects to the Steel-Ply panel. The bottom of the Pipe Form Aligner requires a Pipe Form Aligner Shoe for anchoring a ¾" diameter concrete anchor or a Steel Stake. Pipe Form Aligner have integral turnbuckles and telescoping extensions for lengths from 11' -1" to 20' -1".
