Steel-Ply Filler Panels

product image
left arrow right arrow
Downloads

Steel-Ply Filler Panels

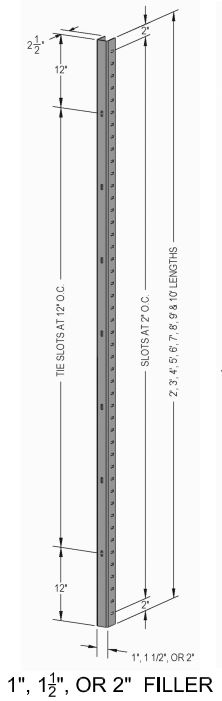

Universal Formworks USA's Steel-Ply Filler Panels are in widths from 1", 1.5" and 2" Wide ranging in heights from 2' to 10' tall. Steel-Ply panels and fillers are constructed from a rugged steel frame. The rolled side rail has a minimum yield stress of 55,000 psi. Crossmembers have a minimum yield stress of 60,000 psi and are located at one foot centers on all panels and fillers.
