Steel-Ply Inside & Outside Corners

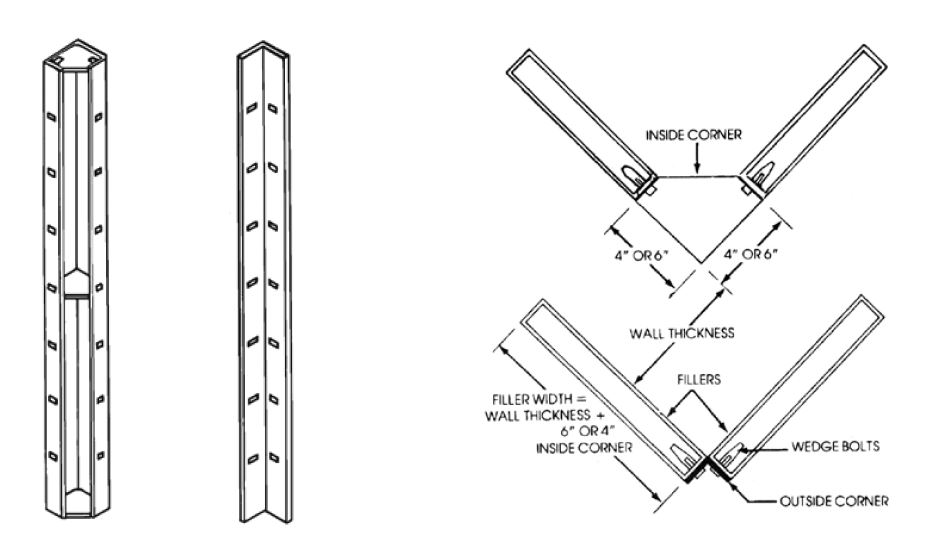

Universal Formwork USA's Steel-Ply Inside & Outside Corners are all-steel corners that lock adjoining forms together to make a 90° angle. Standard Inside Corners have a face dimension of 4"x4" or 6"x6". Each Inside Corner is manufactured with reinforcing straps to maintain 90°. Dadoes are placed 12" O.C. for tie connection and slots are placed 12" O.C. for connecting hardware.
